BSA / C10 - C11 - C12 / 1946-1958 / Clutch and primairy drive / Primairy drice C models /

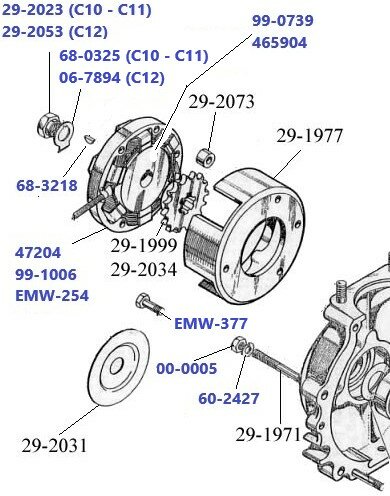

Primairy drive C altenator

Primairy drive C altenator
items:
00-0005
00-0005 Nut 1/4 BSC
€ 0,70
Price per each
Order
06-7894
06-7894 Lockwasher rotor Fits all models where the rotor nut partly goes into the rotor
€ 1,50
Price per each
Order
29-2023
29-2023 Nut If this nut is used as a alternator rotor nut, than a possible alternative is nut 21-2066 UNF (1969-1973)
€ 7,00
Price per each
Order
29-2053
29-2053 Nut, rotor
€ 6,50
Price per each
Order
465904
465904 Rotor for alternator, early LUCAS Diameter ± 70 mm
€ 150,00
Price per each
Order
47204
47204 Alternator stator with rotor 6V 6 Volt with 3 wires. 50 mm wide, this is wider than some so make sure this will fit.
€ 215,00
Price per set
Order
60-2427
60-2427 Spring washer 1/4"
€ 0,15
Price per each
Order
68-0325
68-0325 Lock washer If this lock washer is used for the rotor nut, than it filts all models where the rotor nut doen't go into the rotor.
€ 1,00
Price per each
Order
68-3218
68-3218 Woodruff key If used as a key for the rotor, than it fits all models if the key is shaped as this.
€ 2,00
Price per each
Order
99-0739
99-0739 Rotor, with welded centre LUCAS 54202275 - 54202298 - 54202299 - 54213901 Diameter ± 74 mm
€ 138,00
Price per each
Order
99-1006
99-1006 Stator 12 Volt, 2 wires LUCAS 47205, ± 120 Watt Standard stator for most bikes with 12 volts up to mid 1970's. Diameter hole ± 74 mm, rotor 99-0739 fits. 2 wires
€ 115,00
Price per each
Order
EMW-254
EMW-254 200 watt dynamo kit 12 Volt This kit provides aprroximately 200 watts and replaces the rectifier and diode. Hole diameter ± 74 mm, rotor 99-0739 fits
€ 205,00
Order
EMW-377
EMW-377 Allen bolt 1/4 x 20 x 1.3/4"
€ 1,00
Price per each
Order
